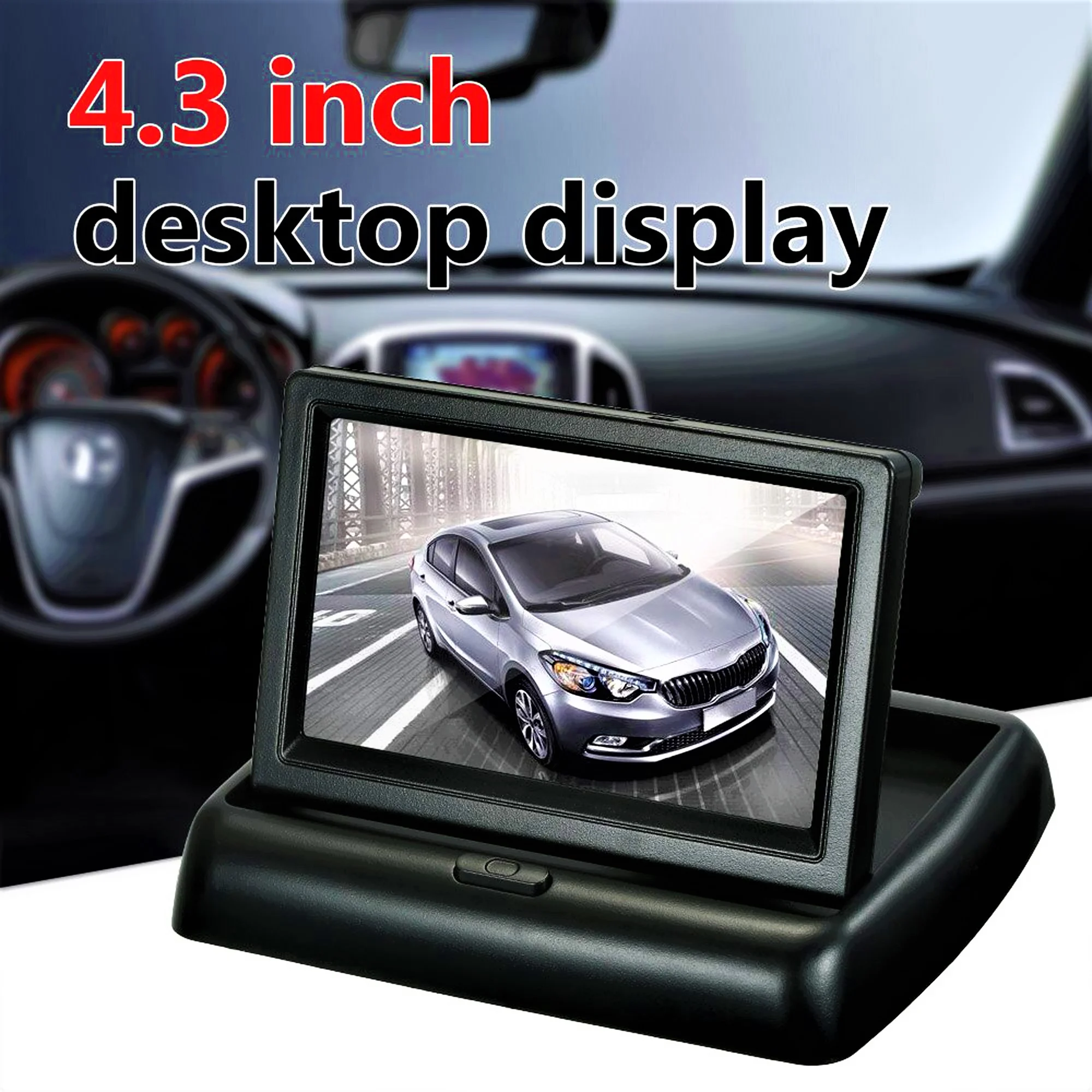

4.3 Inch Foldable Dashboard Colour Display Monitor With Reverse Camera Full Set

Description

Features
● 100% Brand new,High quality
● Screen Size:4.3 inch(16:9)
● Resolution:320(H) x RGB x 240(V)
● Model: PAL/NTSC (Automatic throw-over)
● Power Supply: DC 12V
● Visible Area: 96mm x 54mm
● Power Consumption: 2W
● 2-channel video input: V1/V2 auto switching(V1 display first)
● Note:please Connect the Rearview camera’s power cable with Reversing lamp,and connect camera’s video cable with LCD’s yellow cable(Video V1),then the LCD will show Camera’s video when you are Reversing,and stop playing movie(auto switching)
● Display screen on no signal.
● Dimensions: 120mm(L) x 75mm(W) x 15mm(H)
● 4.3″ Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space.
● Fit all CCTV camera,car Reversing camera,car DVD player
● Water-proof day/night Reversing camera
● Easy installation for DIY usage
● Real-time rear view while back up
● IR Reverse camera with wide view angle 160°

Specifications
● Image device 1/4-inch colour
● night vision
● TV system PAL or NTSC
● Resolution 420 TV lines
● Electric Shutter PAL:625 Lines.25 Field /sec NTSC :720 Lines.25 Field/sec
● Effective pixels PAL: 720X 576 NTSC: 720X 480
● Minimum illumination 0.3Lux
● Viewing angle 170°
● S/N ratio >48dB (AGC-OFF)
● Video output RCA connector, 1.0vp-p, 75ohm
● Current consumption ≤120mA
● Power supply DC8V-12V
● Operating temperature -30 to 65 degrees centigrade, RH95% Max.
● Storage temperature -35 to 70 degrees centigrade, RH95% Max.
● Other items automatic white balance, AGC and BLC
● Water-proof Yes, to IP68 standard

EASY INSTALLATION
● Mount the camera to your car’s license plate area, back window, or any other suitable place
● Adjust the lens of the camera to its best position.
● Connect power wire (red and black) to your vehicle DC 12V power system.
● Connect the video output (yellow wire) of the camera to the display in your vehicle.

PACKAGE INCLUDED
● 1 x Car reversing camera
● 1 x 4.3” Digital TFT LCD Monitor
● 1 x Power Cable for monitor
● 1 x 6m Video cable
● 1 x Power cable for camera
● 1 x User manual
