Package Includes:
-

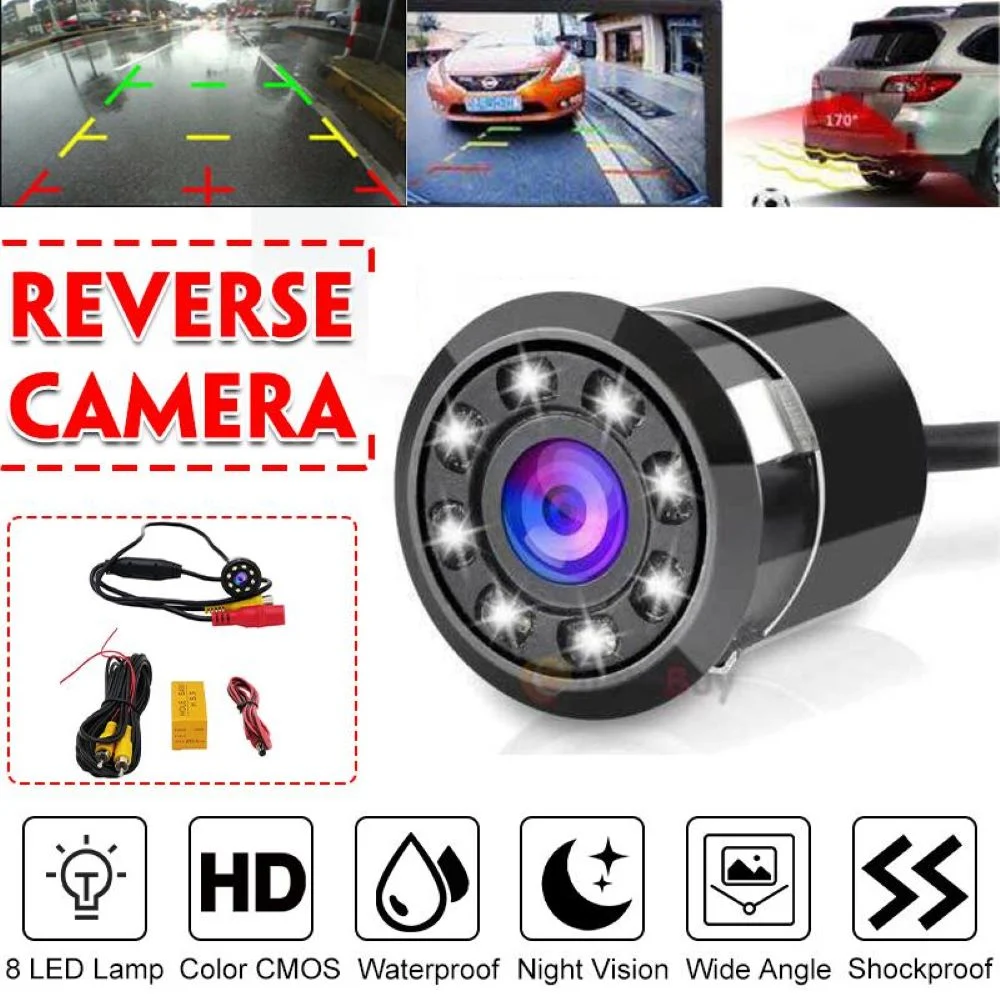

1 x 8 LED round back up camera
-
1 x Video cable
-
1 x Power cable
-
1 x Hole saw
-
1 x English instruction
-
1 x Colored box package
-
Specifications:
-
Image Sensors: PC1030 1/4 Inch Color CMOS
-
Sensor Area: 4.08 x 3.12mm
-
Effective Pixels: 648 x 488 Pixels
-
LED Quantity: 8 IR LED
-
Lens Angle: 170 / 135 degrees
-
Image pipeline feature: Auto exposure, AWB, AGC, Auto detection and cancellation
-
Video System: PAL/NTSC(Automatic throw-over)
-
Minimum Illumination: 0.2Lux(0Lux with IR on)
-
Scanning System: 2:1 Interlace
-
Resolution : 420TV lines
-
Electronic Shutter: 1/60(NTSC) / 1/50(PAL)~1/1000s
-
Gamma Coefficient: 0.45
-
S/N Ratio: >45.6db
-
Dynamic Range: > 63.5db
-
Waterproof Class: IP 68
-
Operation Temperature: -20?~ +75?
-
Storage Temperature: -40?~+85?
-
Video Output: RCA connector, 1.0vp-p, 75Ohm
-
Working Power: DC12V
-
Current Consumption: 60mA
-
Video cable length: Approx 6 m/ 236.2 inch
-
Power supply cable length: Approx 1.2m/ 47.2 inch
-
Drill Hole Diameter: Approx 18.5mm/0.73 inch
