Rs: 62,700.00
In Stock
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |

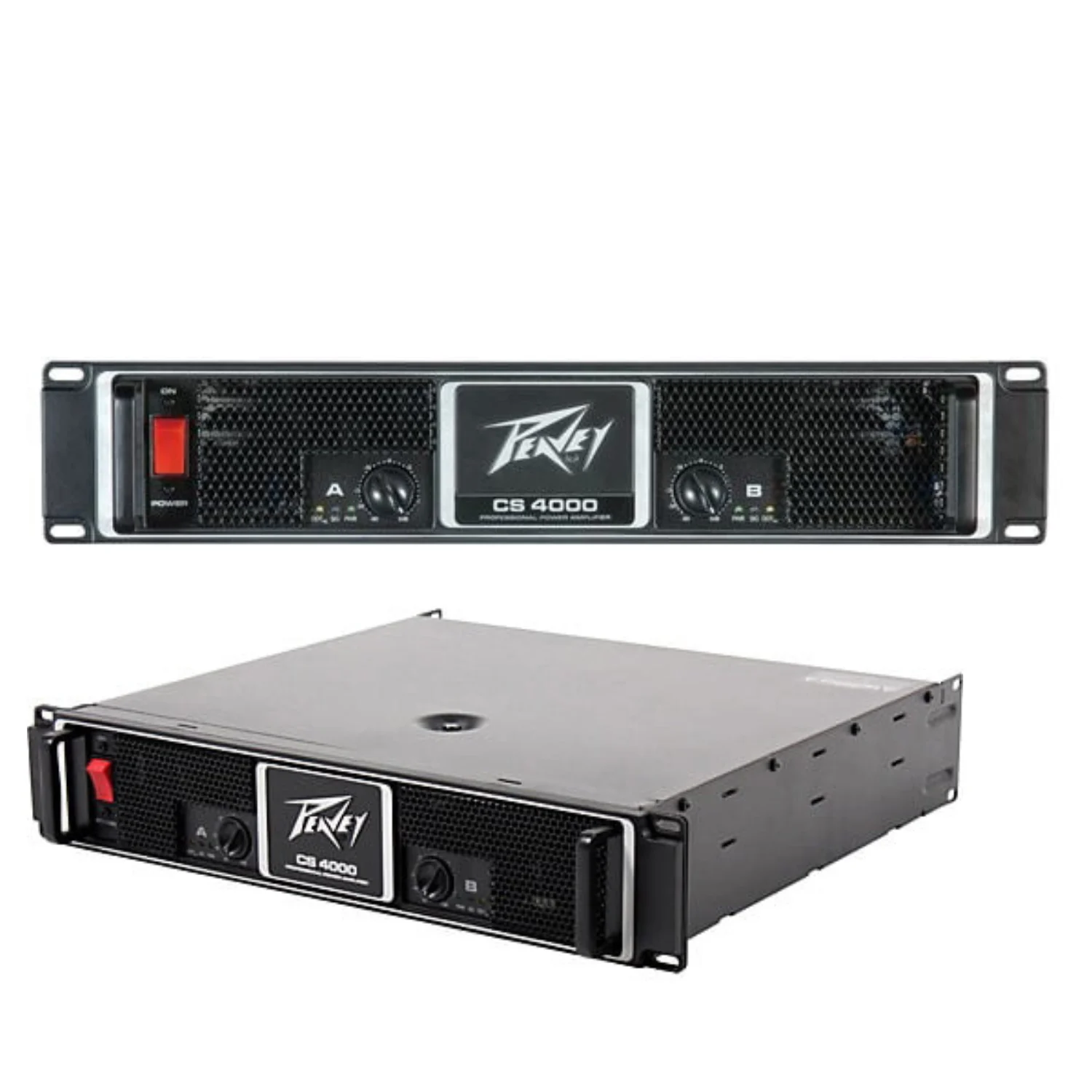

Building on the reputation of the world-famous Peavey CS 800, which conquered the power amp market in the 1970s, the CS Series is the global standard bearer for workhorse reliability. Over the years, these amps have benefited from some of Peavey’s most popular audio innovations, including our exclusive DDT compression/anti-clipping protection. With its 2 RU design and power points up to 4080 watts, this latest evolution of the CS Series is leaner, louder and lighter than ever.
| Rated Power Bridged | 4,000 W @ 1 kHz at <0.1% T.H.D. @ 4 Ω |
| Rated Power |
|
| Minimum Load Impedance | 2 Ω |
| Maximum RMS Voltage Swing | 93 V |
| Frequency Response | 10 Hz – 100 kHz; +0, -2 dB at 1 W |
| Power Bandwidth | 10 Hz – 35 kHz; +0, -3 dB at rated 4 Ω power |
| THD |
|
| Input CMRR | > – 75 dB @ 1 kHz |
| Voltage Gain | x 40 (32 dB) |
| Cross Talk | > -70 dB @ 1 kHz at rated power @ 8 Ω |
| Hum & Noise | > -108 dB, “A” weighted referenced to rated power @ 8 Ω |
| Slew Rate | > 15 V / us |
| Damping Factor (8 Ω) | > 500:1 @ 20 Hz – 1 kHz |
| Phase Response | +5° to – 12° from 20 Hz – 20 kHz |
| Input Sensitivity | 1.84 V +/- 3% for 1 kHz 4 Ω rated power, 1.58 V +/- 3% for 1 kHz 2 Ω rated power |
| Input Impedance | 15 kΩ, balanced |
| Current Draw |
|
| Cooling | Two back panel temperature dependent variable speed 80 mm DC fans |
| Controls | 2 front panel attenuators, rear panel mode switches |
| Indicator LEDs | 2 DDT (clip limiting), 2 signal presence, 2 active status |
| Protection | Thermal, DC, turn-on bursts, subsonic, incorrect loads |
| Input Connectors | Input A: comb XLR and 1/4″ (6.3 mm) phone Input B: comb XLR and 1/4″ (6.3 mm) phone |
| Output Connectors | Output A: speak on and binding post speaker Output B: speak on and binding post speaker |
| Construction | 14 galvanized steel with cast front panel and cast handles |
| Dimensions | 3.5 x 19 x 4.81 + 1.25″ (89 x 483 x 376 + 32 mm) for rear support ears and connectors
1.5″ (38 mm) for handle depth |
| Weight | 43.3 lb. (19.64 kg) |
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
